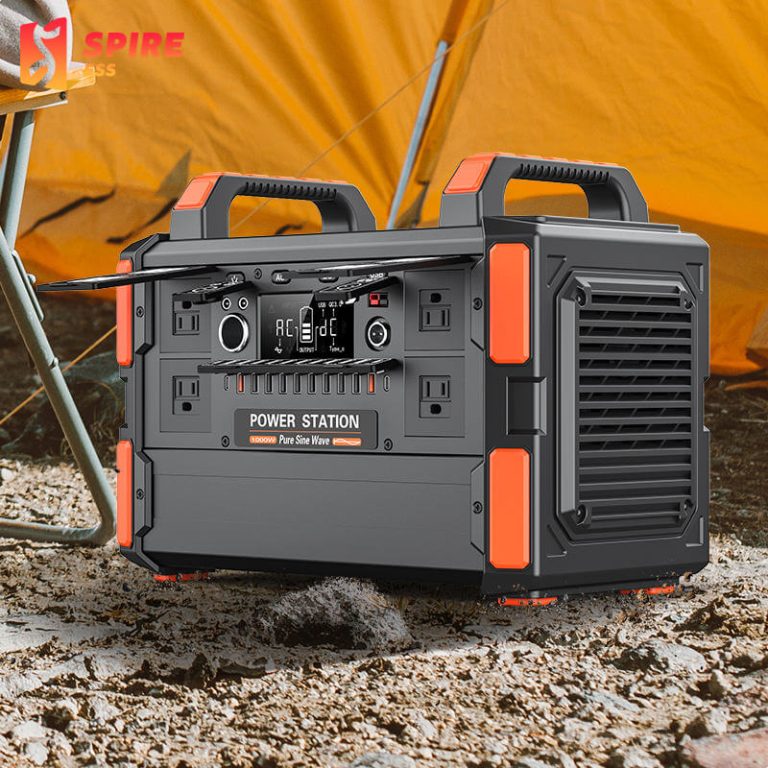

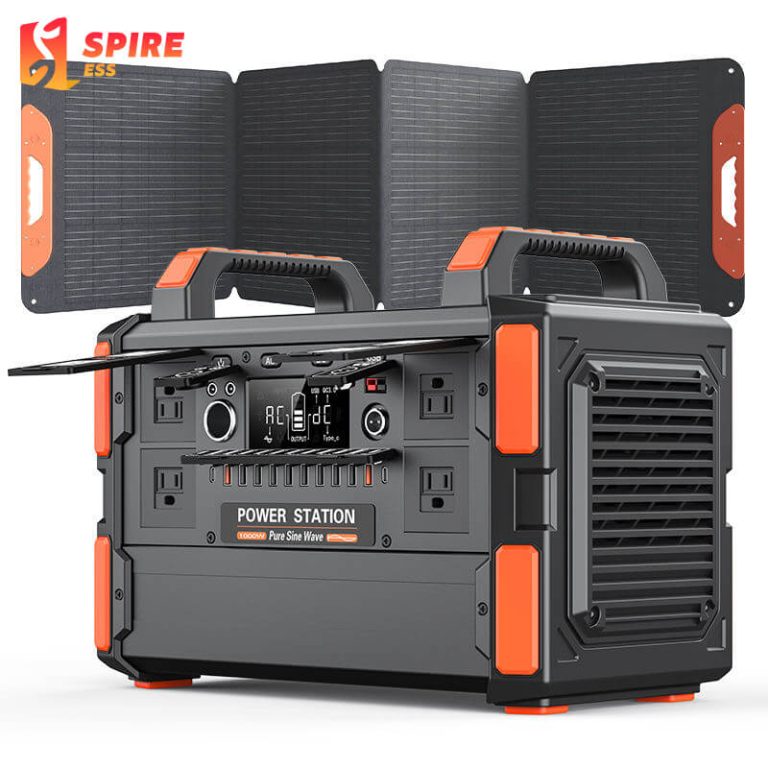

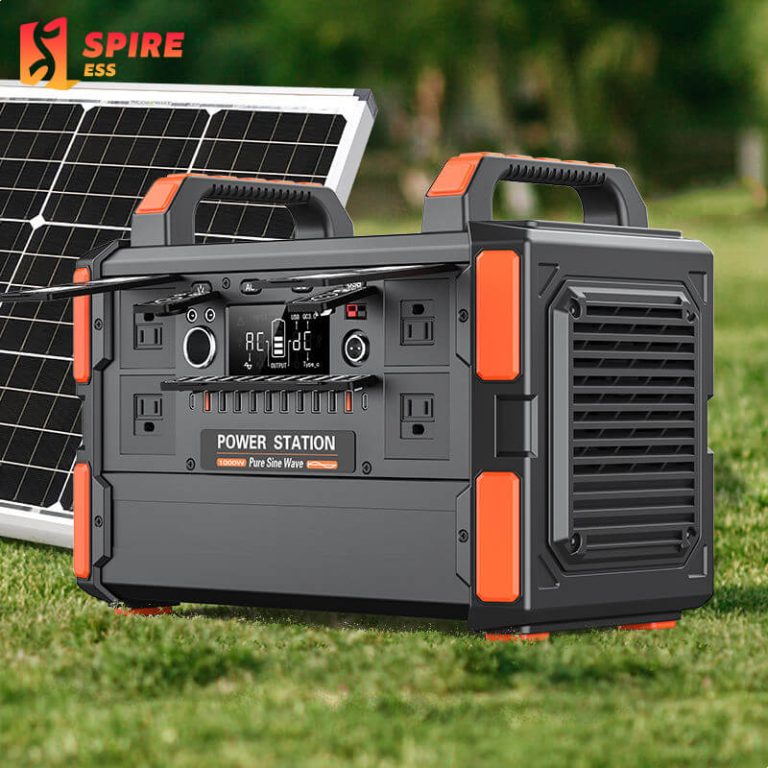

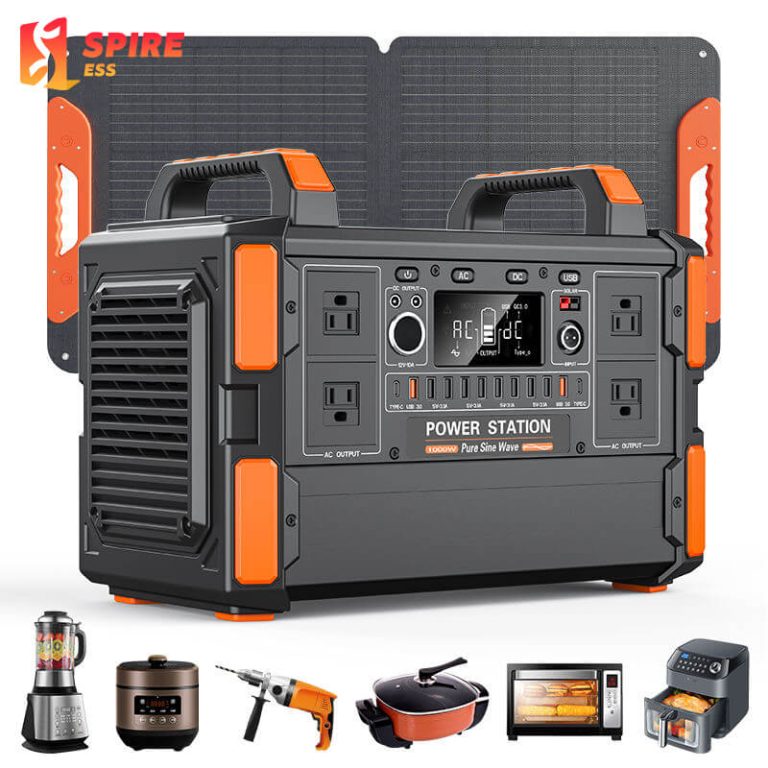

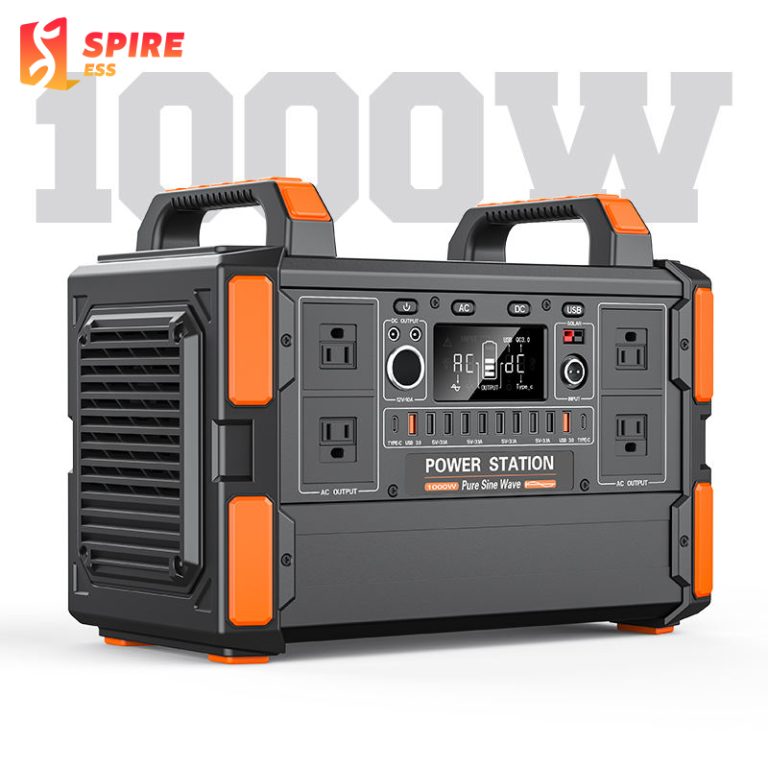

| YD-1000W-B | ||
| General parameters |
Built-in battery | High quality lithium ion battery |
| battery capacity | 1048Wh /3.2V | |
| AC input | N | |
| input recharging | 120W | |
| solar panel charging | Anderson 350W(27V~50V/15A) About 3.5h |
|
| DC Fully Charged Time |
6~ 6 .5Hours | |
| AC Fully Charged Time |
/ | |
| DC output | 8 X USB Port ：5V/3.1A 2 X USB QC 3.0: 5V~9V/2A MAX 18W 2 X Typ-c Port: 5V~9V/2A 18W 2 X 5521 DC output: 12V/7A(Regulated voltage) 1 X Cigar socket: 12V/7A(Regulated voltage) |
|
| AC output | 4 x AC 230V/110V pure sine wave output |
|
| AC continuous output power |
1000W | |
| Operating temperature of |
-20℃-40℃ | |
| b tt
Product protection |
a.Short circuit protection b.Overcurrent protection c.Overvoltage protection d.Undervoltage protection e.Overload protection f.Over temperature protection |
|
| Package included | 1 x portable solar generator 1 x power adapter 1 x user manual |
|
| Machine certification | PSE FCC CE ROHS UL MSDS UN38.3 Air transport report,Marine transportation report |
|
| Adapter parameters |
Output | 25.5V 6A |
| DC interface | 5525 | |
| shape | Desktop | |
| Input charging function |
Support power adapter charging |
Support |
| Support solar panel charging |
Support | |
| Support car charging | Support | |
| Battery | Battery model specifications |
LiFePo4 battery |
| Single cell capacity | 6000 MAH | |
| Battery series parallel |
7 series 8 parallel | |
| Cell voltage | 3.2V | |
| Battery voltage | 22.4V | |
| Battery charge and discharge life |
>2000 times ，Capacity is maintained at approximately 80% |
|
| structure | Product dimension MM | 394*213*287 mm |
| net weight | about 16.0 kg | |
| Material | ABS plastic + aluminum shell, plastic shellfire rating 94-V0; |
|
| Product color matching |
Can be freely matched by customers (quantity required: 300 pcs ) |
|
| Product packaging |
Product packaging | Carrying case neutral |
| Carrying case dimension |
394*213*287 mm | |
| Single carrying case weight |
about 16.0 KG | |
| Use scene mode | Applicable to power outages, outdoor operations, night market electricity, emergency rescue, medical, household energy storage, etc. |
|
| Warranty | 12 months warranty | |
