| Spire M Portable Power Energy Storage Quotation | |||||||

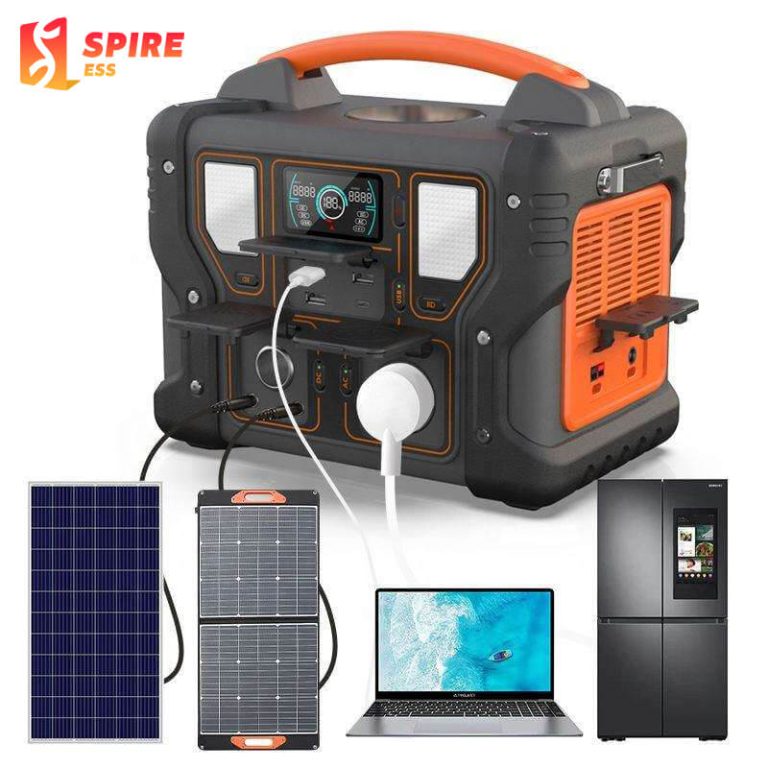

| Model Picture | |||||||
| M1000 Pro | M1000 | M700 | M600 | M500 Pro | M300 | ||
| Rated AC Output | 1000W | 700W | 600W | 500W | 300W | ||
| Rated Capacity | Standard | 999Wh | 999Wh | 699.3Wh | 499.5Wh | 499.5Wh | 299.7Wh |
| Optional | 799.2Wh | 799.2Wh | 599.5Wh | 555Wh | 555Wh | / | |
| 1110Wh | 1110Wh | ||||||
| Standard Capacity | 22.2V/45A or 3.7V/270000mAh |
22.2V/31.5Ah or 3.7V/189000mAh |
22.2V/22.5Ah or 3.7V/135000mAh |
22.2V/22.5Ah or 3.7V/135000mAh |
22.2V/12Ah or 3.7V/72000mAh |
||
| Bettery Type | Li-ion | ||||||
| Battery cycle life | 800 cyceles ,residual capacity ≥80% | ||||||
| UPS | UPS | NO | |||||
| LCD Display | Battery remaining capacity, Battery fault, total output power,Over temperature,input power | ||||||
| Housing Material | ABS+PC ( fireproofing V0) | ||||||
| Charging Temperature Range | 0℃~40℃ | ||||||
| Charge Way |
AC Input | 500W | NO | ||||
| DC Input | NO | DC24V/6.25A(150W) | DC24V/5A（120W) | DC25V/4A(100W ) | DC25V/4A(100W max) | DC15V/4A(60W) | |
| Car Charge | ok | ||||||
| Solar Charge (MPPT) |
400W | 18-23V/8A(150W) | 18-23V/8A(150W) | 18-23V/5A(100W) | 18-23V/6A(100W max) | 18-23V/3A(60W) | |
| Charge Time |
Wall charge | About 1.5～2 .5H | NO | ||||
| DC Input Time | NO | About 7～8H | About 6～7H | About 5～6H | About 5～6H | About 5～6H | |
| Car Charge Time | About 7～12H | ||||||
| Solar Charge Time | About 3～5H | About 6～10H | |||||
| USB Output | USB-Type-C | PD 100W | PD 60W | ||||
| USB-A | QC3 .0*3(54W max) | ||||||
| DC port Output | 12V/5A*2(120W) | ||||||
| Cigarret Lighter Output | 12V/10A(120W) | ||||||
| Wireless Charge Output | NO | 10W | |||||
| LED Light | SOS,Flshlingt(5W*2) | ||||||
| AC Output | Output waveform | Pure Sine Wave | |||||
| Output voltage | 110V*2(US/JP) or 220V*2(EU/UK/AU/CN/SA) | ||||||
| Output frequency | 50/60Hz | ||||||
| AC continuous output |
1000W | 700W | 600W | 500W | 300W | ||
| Peak AC output | 2000W | 1400W | 1200W | 1000W | 600W | ||
| Discharging Temperature Range | -15~45℃ | ||||||
| Authentication | UL,FCC ,CE, ROSH,PSE, UN38.3,SAA,UKCA | ||||||
| Product Size | 328*221*263mm | 273* 181*244mm | 325*250*365mm | 273* 181*244mm | |||
| Weight | about10.5Kg | about 9.2Kg | about 7 .4Kg | about 5Kg | about 6.3Kg | about 3.8Kg | |
| Warrantly | 12 months | ||||||
| Color | orange+gray | ||||||
| Accessories | portable power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable 1*AC cable |
portable power supply 1*AC input power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable 1*straps |
portable power supply 1*AC input power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable 1*straps |
portable power supply 1*AC input power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable |
portable power supply 1*AC input power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable |
portable power supply 1*AC input power supply 1*User Manual color box packaging 1*MC4 charging cable 1*vehicle charging cable |
|
