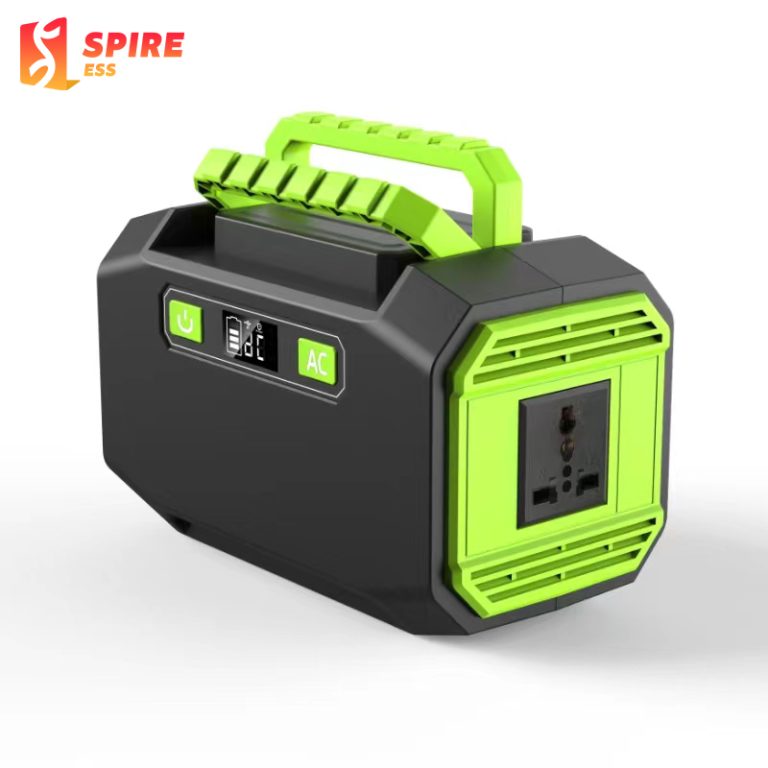

| YD200 | ||
| General parameters |
Built-in battery | High quality lithium ion battery |
| battery capacity | 145Wh / 39000mAh /3.7V | |
| AC input | N | |
| input recharging | DC15V/2.0A 30W | |
| solar panel charging | DC35135 13V~26V/2.0A Max | |
| DC Fully Charged Time |
6.5 hours | |
| AC Fully Charged Time |
/ | |
| DC output | 3xDC output 9~12.6V/10A USB output 5V/2.1A +USB output 5V/1A |
|
| AC output | 1 x AC Modified wave output | |
| AC continuous output power |
200W | |
| Operating temperature of |
-20℃-40℃ | |
| b tt
Product protection |
a.Short circuit protection b.Overcurrent protection c.Overvoltage protection d.Undervoltage protection e.Overload protection f.Over temperature protection |
|
| Package included | 1 x portable solar generator 1 x power adapter 1 x user manual 1x cigar lighter 1x car charger |
|
| Machine certification | PSE FCC CE ROHS UL MSDS UN38.3 Air transport report,Marine transportation report |
|
| Adapter parameters |
Output | 15V 2A |
| DC interface | 35135 | |
| shape | Wall charger | |
| Input charging function |
Support power adapter charging |
support |
| Support solar panel charging |
support | |
| Support car charging | support | |
| Battery | Battery model specifications |
18650 |
| Single cell capacity | 2600MAH | |
| Battery series parallel |
3 Series 5 parallel | |
| Cell voltage | 3.7V | |
| Battery voltage | 11.1V | |
| Battery charge and discharge life |
>1000 times ，Capacity is maintained at approximately 80% |
|
| structure | Product dimension MM | 196*108*126mm |
| net weight | 1.5kg | |
| Material | ABS plastic , plastic shellfire rating 94-V0; |
|
| Product color matching |
Can be freely matched by customers (quantity required) |
|
| Product packaging |
Product packaging | Carrying case |
| Carrying case dimension |
282*146*170mm | |
| Single carrying case weight |
1.9KG | |
| Use scene mode | Applicable to power outages, outdoor operations, night market electricity, emergency rescue, medical, household energy storage, etc. |
|
| Warranty | 12 months warranty | |
