| YD-3000W-A | ||
| General parameters |
Built-in battery | LiFePO4 |
| battery capacity | 2688Wh/3.2V | |
| AC input | 1600W MAX | |
| input recharging | N | |
| solar panel charging | 650W 12-80V/DC8.5A Max | |
| DC Fully Charged Time |
/ | |
| AC Fully Charged Time |
2.5-3 Hours | |
| DC output | 4 X USB QC 3.0: 5V~9V/2A MAX 18W 2 X Typ-c Port: 5V~15V/3A 20V 5A 100W MAX 2 X 5521 DC output: 13.5V/10A(Regulated voltage) 1 X Cigar socket: 13.5V/10A(Regulated voltage) |
|
| AC output | 4 x AC 230V/110V pure sine wave output |
|
| AC continuous output power |
3000W | |
| Operating temperature of |
-20℃-40℃ | |
| b tt
Product protection |
a.Short circuit protection b.Overcurrent protection c.Overvoltage protection d.Undervoltage protection e.Overload protection f.Over temperature protection |
|
| Package included | 1 x portable solar generator 1 xAC line 1 x user manual |
|
| Machine certification | PSE FCC CE ROHS UL MSDS UN38.3 Air transport report,Marine transportation report |
|
| Adapter parameters |
Output | N |
| DC interface | N | |
| shape | Desktop | |
| Input charging function |
Support power adapter charging |
support |
| Support solar panel charging |
support | |
| Support car charging | support | |
| Battery | Battery model specifications |
LiFePo4 battery |
| Single cell capacity | 15000MAH | |
| Battery series parallel |
14series 4 parallel | |
| Cell voltage | 3.2V | |
| Battery voltage | 45V | |
| Battery charge and discharge life |
>2500 times ，Capacity is maintained at approximately 80% |
|
| structure | Product dimension MM | L470*290*H340mm |
| net weight | about 35kg | |
| Material | ABS plastic + aluminum shell, plastic shellfire rating 94-V0; |
|
| Product color matching |

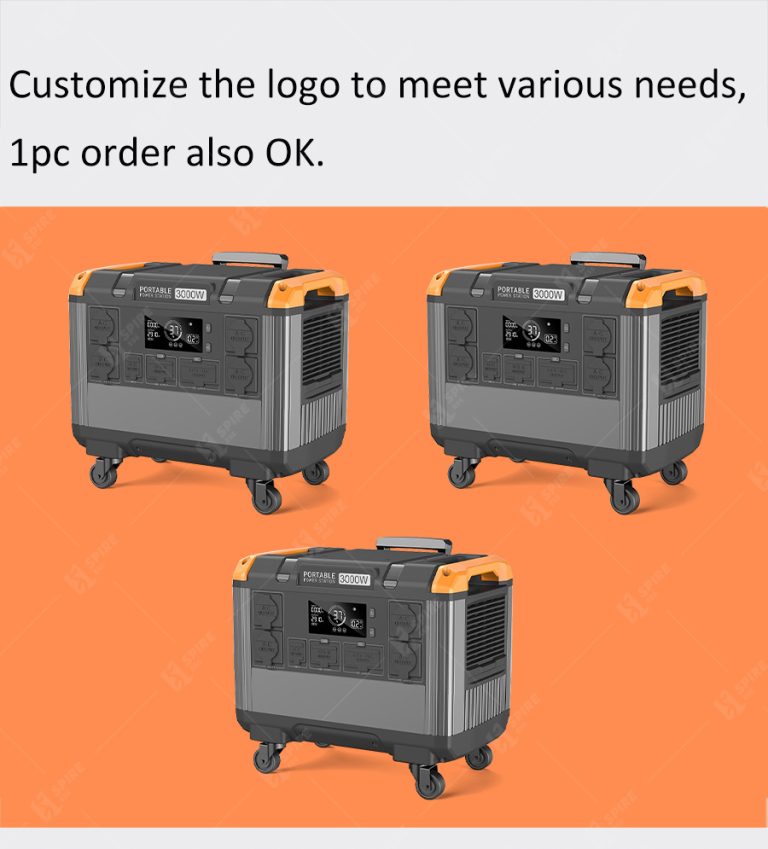

Can be freely matched by customers (quantity required: 200 pcs ) |
|
| Product packaging |
Product packaging | Carrying case neutral |
| Carrying case dimension |
615x425x485mm | |
| Single carrying case weight |
about39kg | |

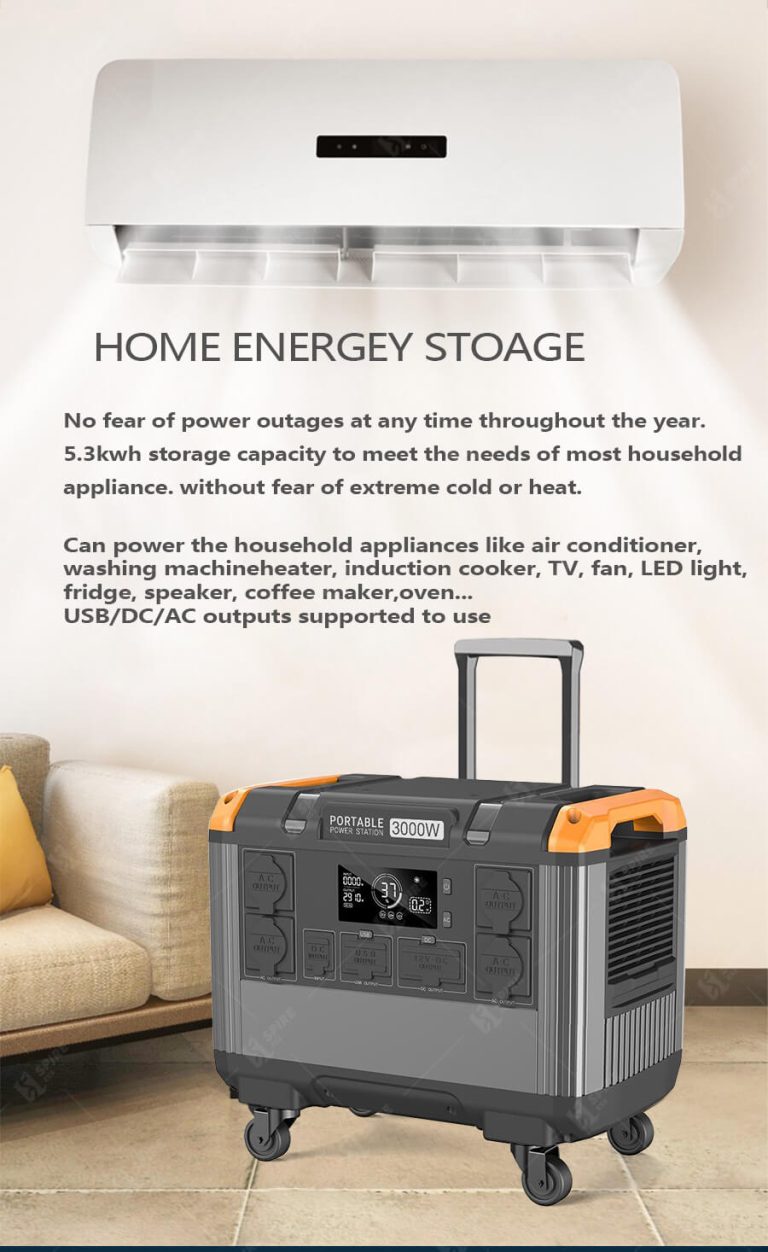

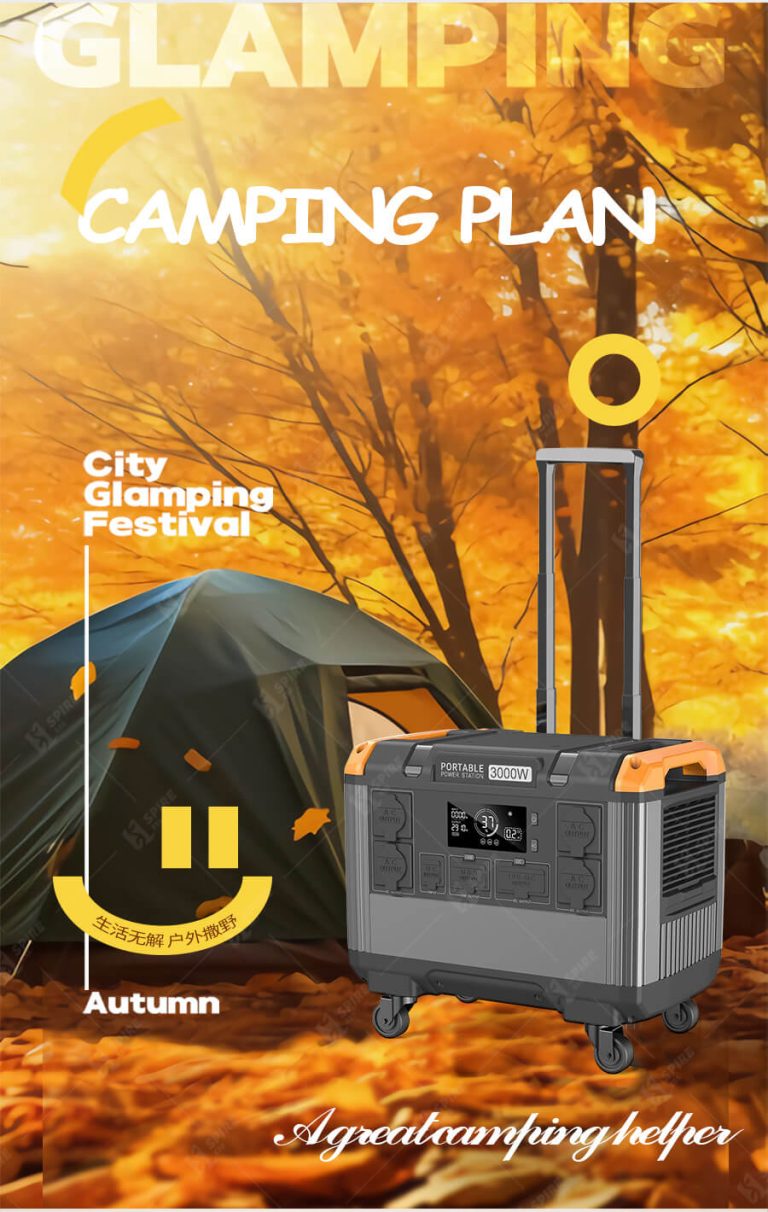

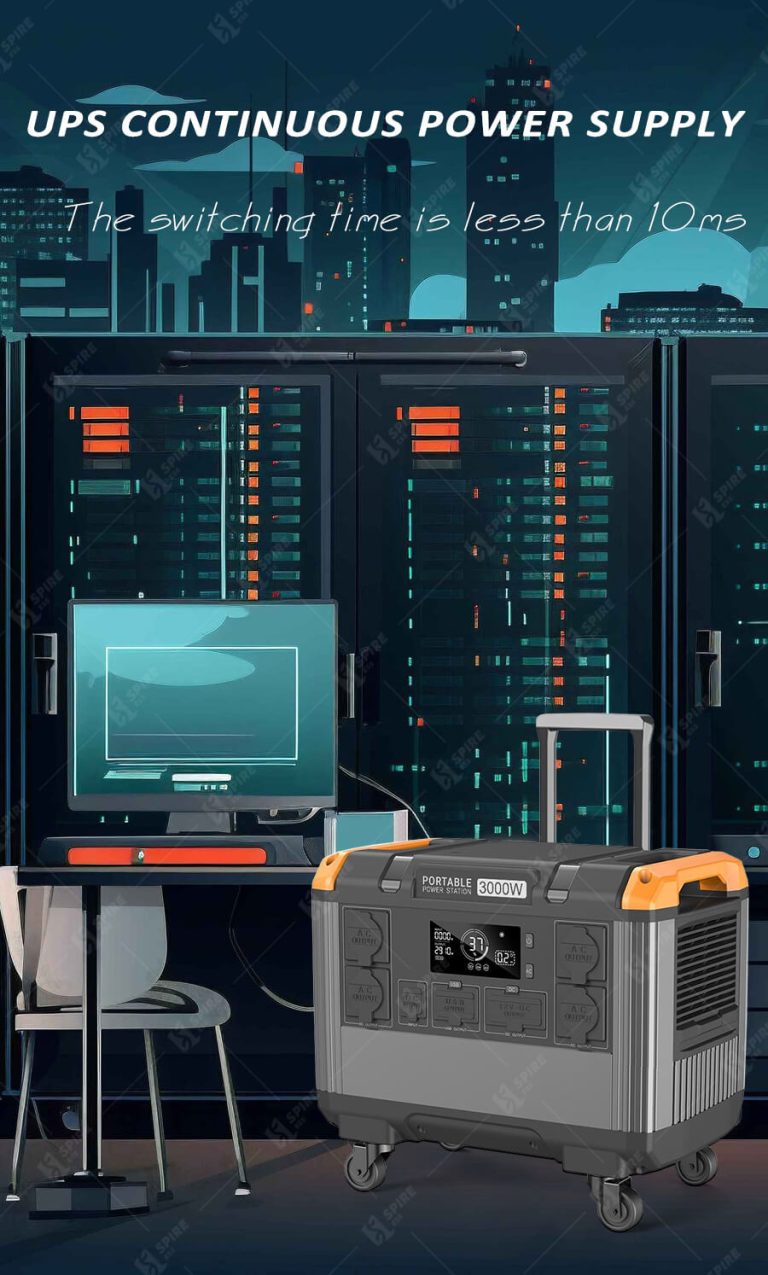

| Use scene mode | Applicable to power outages, outdoor operations, night market electricity, emergency rescue, medical, household energy storage, etc. |
|
| Warranty | 12 months warranty | |
