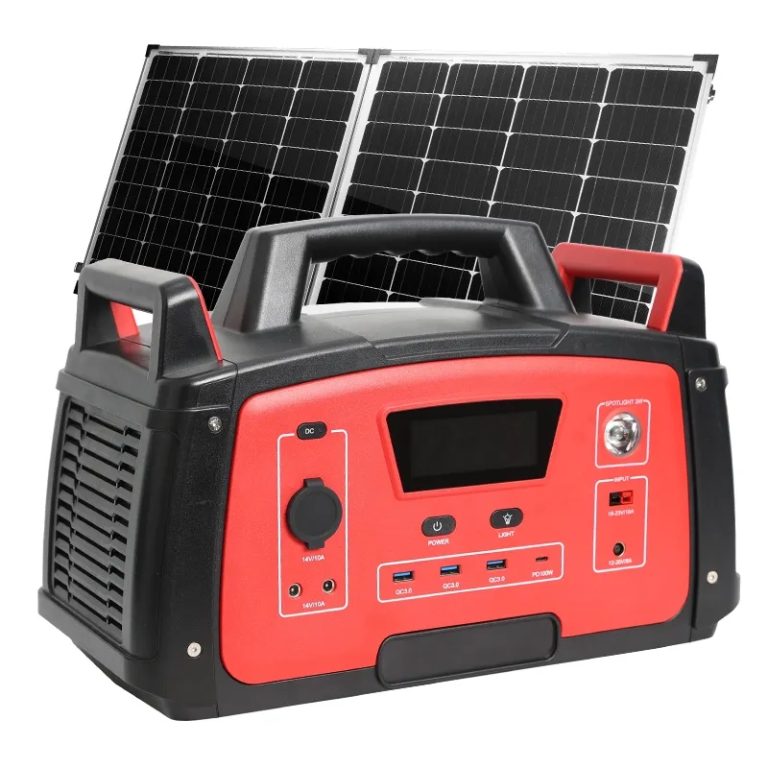

| YD-1000W-A | ||
| General parameters |
Built-in battery | Lithium-ion |
| battery capacity | 1064Wh/270400mAh | |
| AC input | N | |
| input recharging | 180W | |
| solar panel charging | 5525 100W （ 13V~26V/6.0A） About 6.5h |
|
| DC Fully Charged Time |
5~ 5.5 Hours | |
| AC Fully Charged Time |
/ | |
| DC output | AC output：2* 110V/60HZ 4*230V/50HZ DC output：2 *13.5V/10A 1 *13.5V/10A Cigarette USB output： USB-C 3 * 5-9V/2A TYP-C 1* 20V/5A |
|
| AC output | 2 x AC pure sine wave output | |
| AC continuous output power |
1000W | |
| Operating temperature of |
-10℃-40℃ | |
| b tt
Product protection |
a.Short circuit protection b.Overcurrent protection c.Overvoltage protection d.Undervoltage protection e.Overload protection f.Over temperature protection |
|
| Package included | 1 x portable solar generator 1 x power adapter 1 x user manual |
|
| Machine certification | PSE FCC CE ROHS UL MSDS UN38.3 Air transport report,Marine transportation report |
|
| Adapter parameters |
Output | 20V 5A/ 25V6A |
| DC interface | 5525 | |
| shape | Desktop | |
| Input charging function |
Support power adapter charging |
Support |
| Support solar panel charging |
Support | |
| Support car charging | Support | |
| Battery | Battery model specifications |
DC18650/LiFePo4 battery |
| Single cell capacity | 2600MAH | |
| Battery series parallel |
8 series 12 parallel | |
| Cell voltage | 3.7V | |
| Battery voltage | 29.6 | |
| Battery charge and discharge life |
>2000 times ，Capacity is maintained at approximately 80% |
|
| structure | Product dimension MM | 445*235*320mm |
| net weight | about 15.0 kg | |
| Material | ABS plastic ,plastic shellfire rating 94-V0; |
|
| Product color matching |
Can be freely matched by customers (quantity required: 300 pcs ) |
|
| Product packaging |
Product packaging | Carrying case neutral |
| Carrying case dimension |
500*335*395mm | |
| Single carrying case weight |
about18kg | |
| Use scene mode | Applicable to power outages, outdoor operations, night market electricity, emergency rescue, medical, household energy storage, etc. |
|
| Warranty | 12 months warranty | |
