Key Features:
High Efficiency: The system boasts a peak efficiency of 96.5% and a CEC weighted efficiency of 92.5%, maximizing energy production.

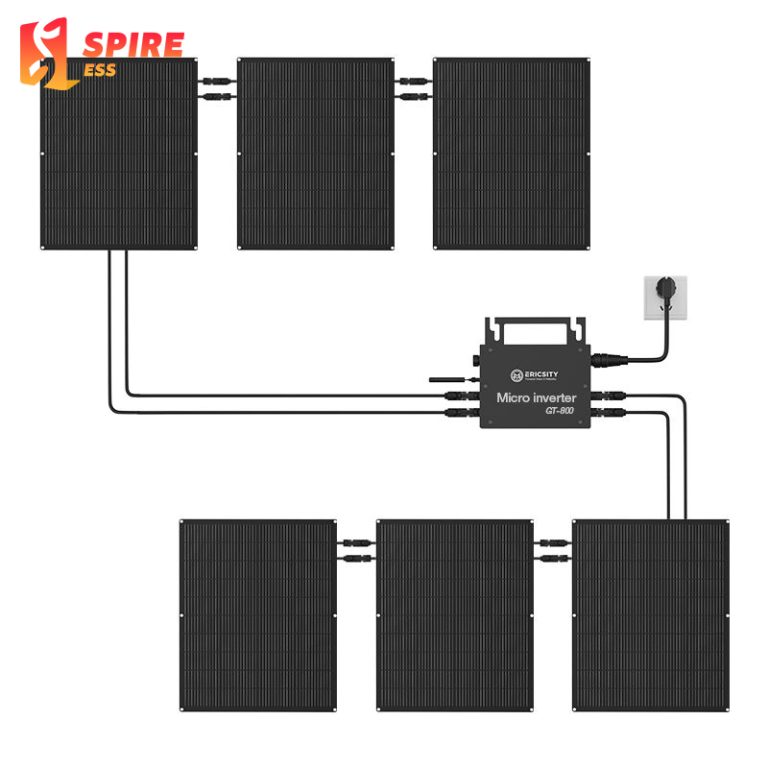

Micro Inverter Technology: Each panel is connected to a micro inverter, allowing for independent optimization and monitoring.

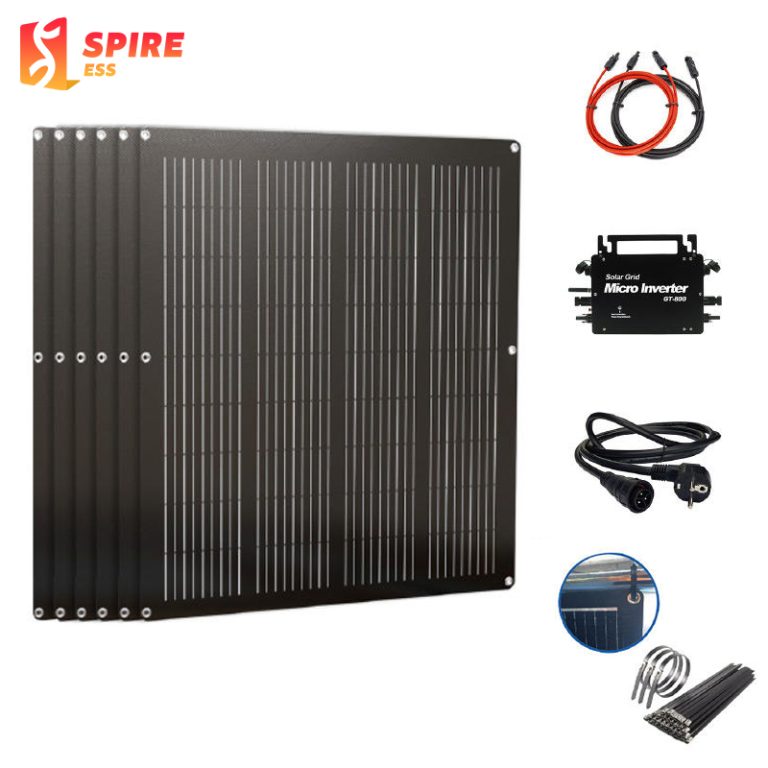

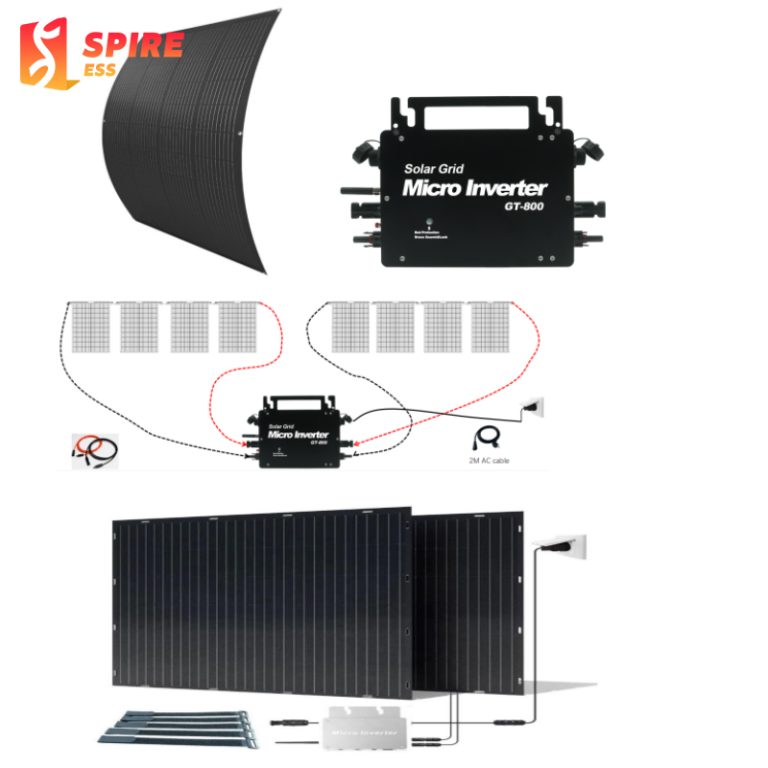

Easy Installation: The system comes with all the necessary components for a straightforward setup, including pre-wired PV cables and a 5M AC cable.
Smart Monitoring: Built-in WiFi enables remote monitoring of the system’s performance through a mobile app.
Safety Features: DC 60 volts with surge protection ensures safe operation.
Application:
Rooftop solar installations: Ideal for homeowners with limited roof space or who want a modular system.
Off-grid applications: Powering appliances and electronics in remote locations.
Backup power: Providing reliable backup power during grid outages.
Key Parameters:
| TEM MICROINVERTER | |||||||||||
| Input Data(DC) | WVC-800 | ||||||||||
| Maximum Input Power | Max 2x500W | ||||||||||
| Mppt Voltage Range(Module Open Circuit Voltage) | 30-60V | ||||||||||
| Starting Voltage | 22V d.c. | ||||||||||
| Working Voltage Range | 22-60V d,c | ||||||||||
| Maximum Input Voltage | 60V | ||||||||||
| Maximum Input Current | 2x18A | ||||||||||
| Maximum Input Short Circuit Current | 2x20A | ||||||||||
| MaximumFeedback Current Of The Array | |||||||||||
| Output Data (AC) | WVC-800 | ||||||||||
| Maximum Output Power | 800VA | ||||||||||
| Rated Output Current | @120V 6.6A @230V 3.5A |
||||||||||
| Nominal Output Voltage Range | @120V a.c. (Application area:suchas Japan,NorthAmerica,etc) @230V a.c. (Application area:suchas Europe) |
||||||||||
| Nominal Frequancy Range | 50Hz/60Hz | ||||||||||
| Power Factor | >0.99 default 0.95 leading..0.95 lagging |
||||||||||
| HarmonicDistortion Of Output Current | <3% | ||||||||||
| Maximum Number Of Connection Per Branch | @120V6 PCs @230V 12 PCs |
||||||||||
| Efficiency,Safety andProtection | WVC-800 | ||||||||||
| Peak Microinverter Efficiency | 92.70% | ||||||||||
| CEC weighted efficiency | 92.50% | ||||||||||
| Nominal MPPT Efficiency | 99.80% | ||||||||||
| Night power consumption(mV) | 0 | ||||||||||
| Mechanical Data | WVC-800 | ||||||||||
| Ambient temperature range | -20 to +50℃ | ||||||||||
| Storage temperature range | -20 to +50℃ | ||||||||||
| Dimensions(LxWxH) | 283 X200X41.6mm | ||||||||||
| Weight | 1.46kg | ||||||||||
| Waterproof level | Outdoor Nema 3r(IP65) | ||||||||||
| Cooling method | Natural Convection (no Fans) | ||||||||||
| Degree ofpollution | PD3 | ||||||||||
| Feature | WVC-800 | ||||||||||
| Power Delivery Mode | Reverse transmission,load priority | ||||||||||
| Communication method | WiFi | ||||||||||
| Surveillance system | Smart Life | ||||||||||
| Warranty | 5 years | ||||||||||
| Electrical Standard | EN 50549-1.2019.EN 50549-2.2019 EN 61000-6-1:2007.EN 61000-6-3:2007+A1:2011+AC2012 IEC/EN 62109-1:2010.IEC/EN 62109-2:2011 |
||||||||||
| ITEM YH410W-27MH | |||||||||||
| Electrical Data (STC) | |||||||||||
| Peak Power (Pmax) | 410 | ||||||||||
| Max Power Voltage (Vmp) | 31.46 | ||||||||||
| Max Power Current(Imp) | 13.04 | ||||||||||
| Open Circuit Voltage (Voc) | 37.45±3% | ||||||||||
| Short Circuit Current (Isc) | 13.85±3% | ||||||||||
| Module Eficiency(%) | 20.99 | ||||||||||
| Solar Panel | |||||||||||
| Qty | 2 pcs | ||||||||||
| Weight | 21.5kg*2 | ||||||||||
| Dimension | 1722*1134*35mm | ||||||||||
| Solar panel with “all in one”bracket size | |||||||||||
| Weight | 32.5kg*2 | ||||||||||
| Dimension | 1860*1160*53mm | ||||||||||
| Packing size(2 units) | |||||||||||
| Weight | 73kg | ||||||||||
| Dimension | 1872*1172*135mm | ||||||||||
